VSY 15 – 6″ Submersible Pump E-tech Franklin Electric

Features

• Fabricated Noryl® (Registered Trademark of G.E.) impellers and diffusers
• Compact, reliable and suited to operate in horizontal position
• Buil-in check valve to protect the pump against water hammer risk
• External stainless steel sleeve to improve stiffness and assure permanent alignment of all components
• The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pump systems more cost effective

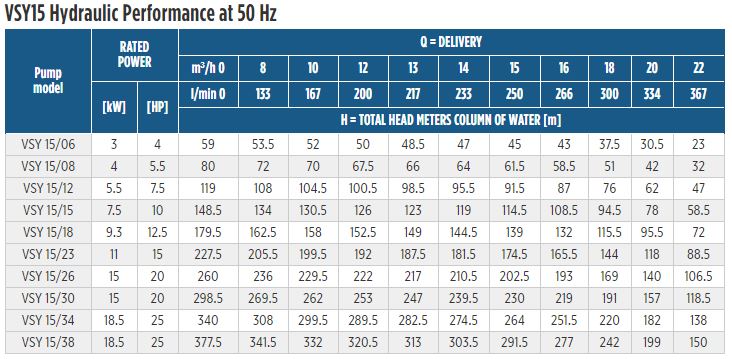

Specifications

• • Flow: 22m3/h
  • up to 32m³/h at 50 Hz
  • up to 37 m³/h at 60 Hz
  • Head:
  • up to 346 m at 50 Hz
  • up to 360 m at 60 Hz
  • Maximum allowable amount of sand: 100 g/m³
  • Water temperature
  • Minimum: 0 °C
  • Maximum: +40 °C
  • Rotation: counter clockwise when looking into the discharge
  • Pump can work continuously in vertical or horizontal position
  • Motor adapter in compliance with NEMA Standard
  • Motors: see section Submersible Motors
