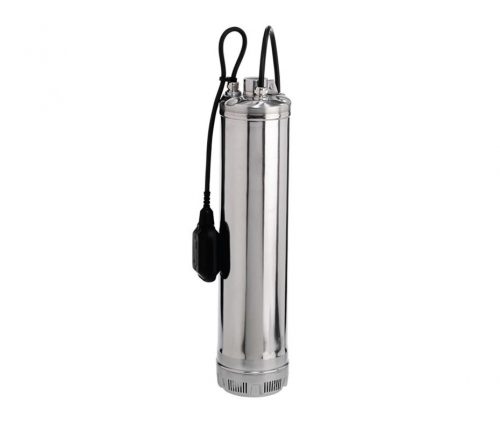

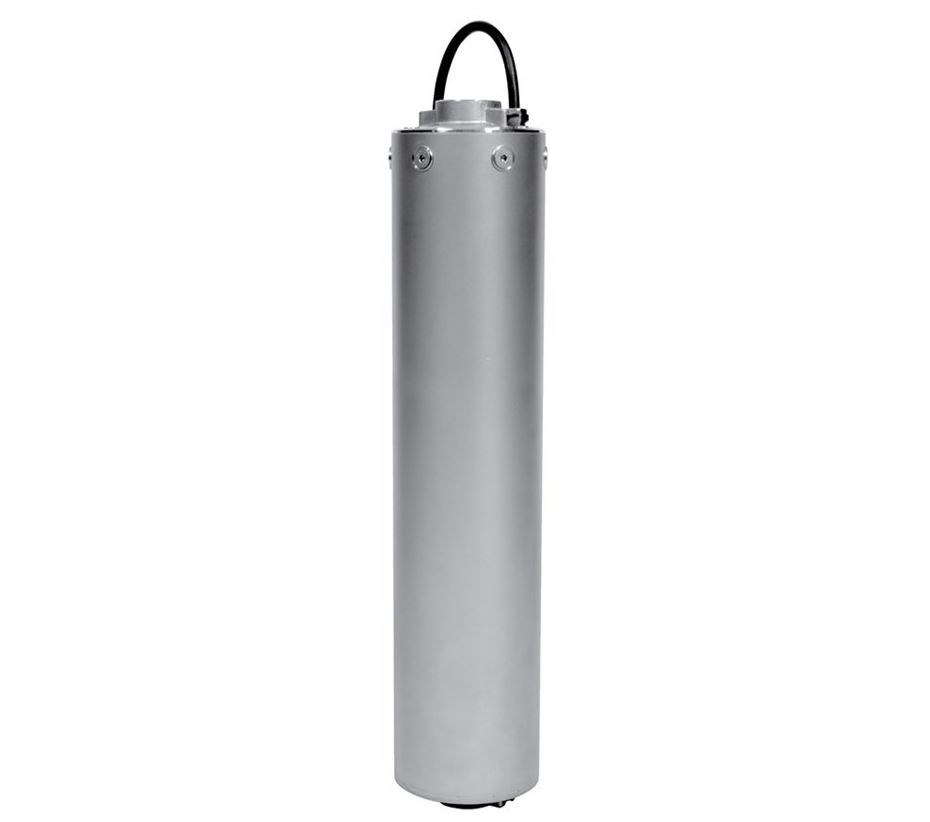

VL5 5″ In-line Pumps deliver efficiency and superior performance for a wide variety of demanding applications.
Features
- Compact close-coupled design, robust and corrosion resistant
- Impellers and diffusers are made of stainless steel in order to achieve durability, superior efficiency and the highest performances
- Double mechanical seal separated by an oil* chamber for maximum motor protection (*In compliance with FDA – Food, Drug Administration – and the annex to G.U. no. 104 of 20/04/73 for oils in contact with food stuffs)
- Plug-in type power cable and level control (floater) for easy replacement
- Over size motor shaft
- Extremely silent pump thanks to the inside motor, cooled by the pumped liquid itself
- Pump fitted with flanged connections to allow for easy installation in narrow spaces or, more simply, in line with the pipeline
Specifications
- Flow:
- up to 14 m³/h at 50 Hz
- up to 16 m³/h at 60 Hz
- Head:
- up to 104 m at 50 Hz
- up to 115 m at 60 Hz
- Connections: Rp threaded for inlet and outlet
- Maximum working pressure: 15 Bar
- Maximum immersion depth: 20 m
- Liquid temperature range: from -5 °C to +40 °C
- The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B
- Power cable: 2 m cable type H07RN-F is supplied with standard version
- Continuous operating either in vertical or horizontal position
Applications
- Pressure boosting
- Water distribution
- Water supply from wells or first collecting tanks
- Rainwater collection
- Wash down unit
- Irrigation / Gardening / Sprinklers
- Fountains and water games
- Specific applications to cape problems of noise
- Specific applications to cape problems of space-saving

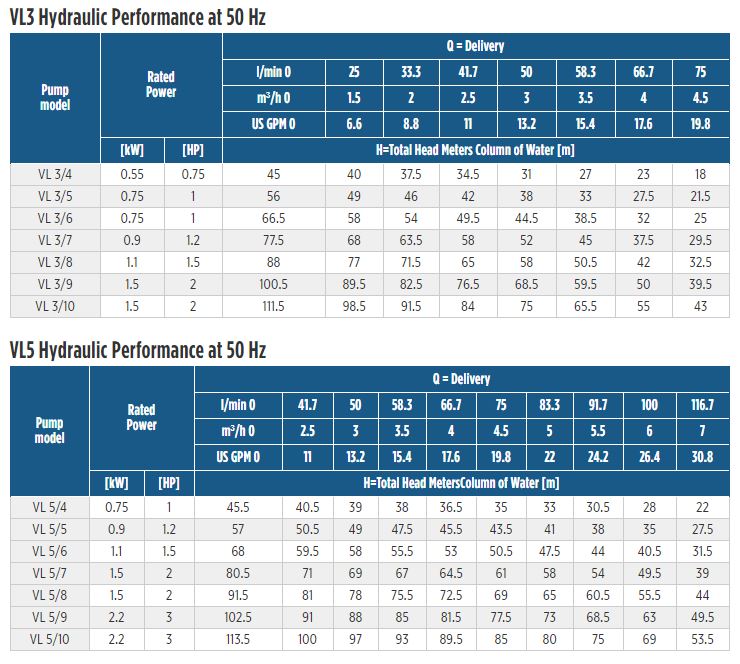

| Part Numbers | VL 5/10, VL 5/4, VL 5/5, VL 5/6, VL 5/7, VL 5/8, VL 5/9 |
|---|
