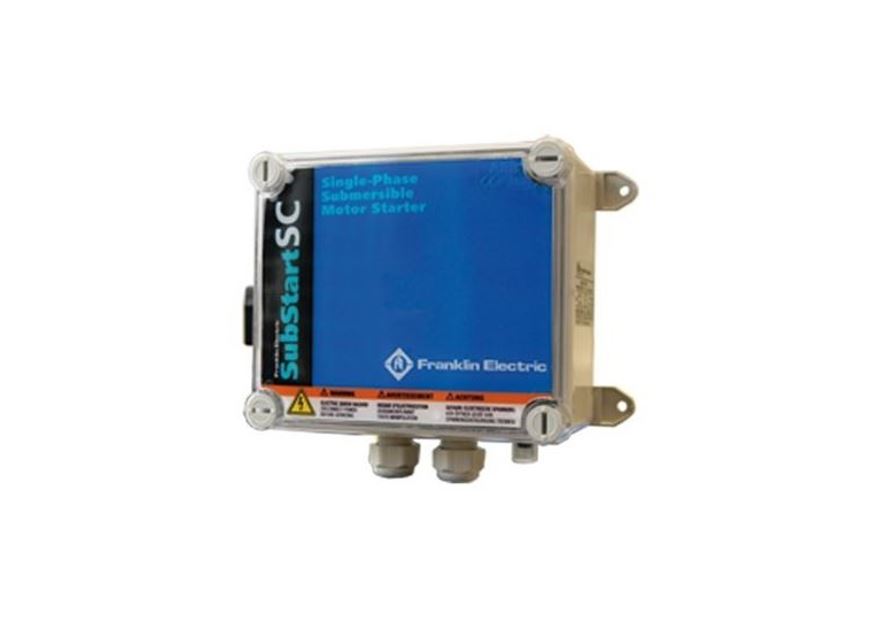

SubStartSC 1-Phase

The SubStartSC® range covers all PSC motors from 0.25 kW to 2.2 kW for all voltages. Ergonomic design, attention to detail and unique features make the SubStartSC® motor starter range your first choice when considering submersible motor protection. In conjunction with Franklin Electric submersible motors you now have a tangible water system advantage resulting in ease of installation and reliable protection.

Specifications:

  • Attention to detail – every aspect engineered for the application
  • The complete package – the device is 100 % compatible with the motor characteristics
  • All in one name – reliability backed by the leader in submersible motors
  • Design
  • Mounting: easy wall mounting without destroying the protection rating of the enclosure.
  • Wiring: sufficient space is provided for ease of wiring.
  • Enclosure
  • Protection: IP54
  • Material: PVC / PC
  • Components
  • ON/OFF switch: illuminated integral ON/OFF switch for ease of power
  • Circuit breaker: thermal circuit breaker for protection of the motor.
  • Capacitor: high quality motor run capacitor for long life
  • Terminal board: terminal board suitable for ease of reliable connections
  • Cable glands: cable glands to ensure IP54 rating

SubStartSC® range covers all PSC motors from 0.25 kW to 2.2 kW for all voltages. Ergonomic design, attention to detail and unique features make the SubStartSC® motor starter range your first choice when considering submersible motor protection. In conjunction with Franklin Electric submersible motors you now have a tangible water system advantage resulting in ease of installation and reliable protection.

Specifications:

  • Attention to detail – every aspect engineered for the application
  • The complete package – the device is 100 % compatible with the motor characteristics
  • All in one name – reliability backed by the leader in submersible motors
  • Design
  • Mounting: easy wall mounting without destroying the protection rating of the enclosure.
  • Wiring: sufficient space is provided for ease of wiring.
  • Enclosure
  • Protection: IP54
  • Material: PVC / PC
  • Components
  • ON/OFF switch: illuminated integral ON/OFF switch for ease of power
  • Circuit breaker: thermal circuit breaker for protection of the motor.
  • Capacitor: high quality motor run capacitor for long life
  • Terminal board: terminal board suitable for ease of reliable connections
  • Cable glands: cable glands to ensure IP54 rating

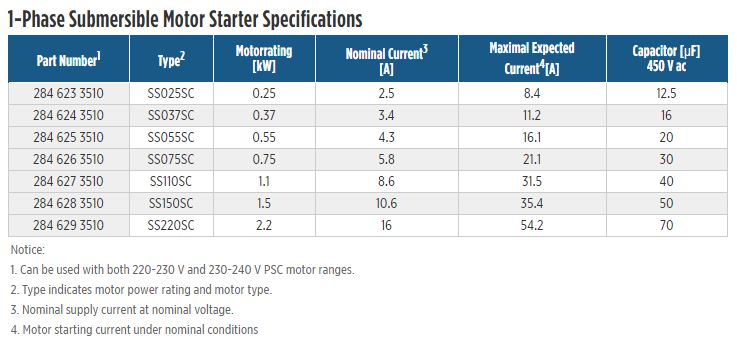

Technical Specifications:

  • Mechanical
  • Protection level: IP54
  • External dimensions: 168 x 142 x 8 5 mm
  • Weight: 0.6 – 1.0 kg
  • Mounting: wall mounting (mounting hardware provided)
  • Temperature: -5 °C – +40 °C
  • Humidity: 50 % at 55 °C (without condensation)
  • Electrical
  • Voltage: 220 – 240 V; – 6 / +10 %; 50 Hz 1-phase
  • Current: 2.2 – 16 A
  • Power: 0.25 – 2.2 kW
  • Standards
  • IEC 60439-1
