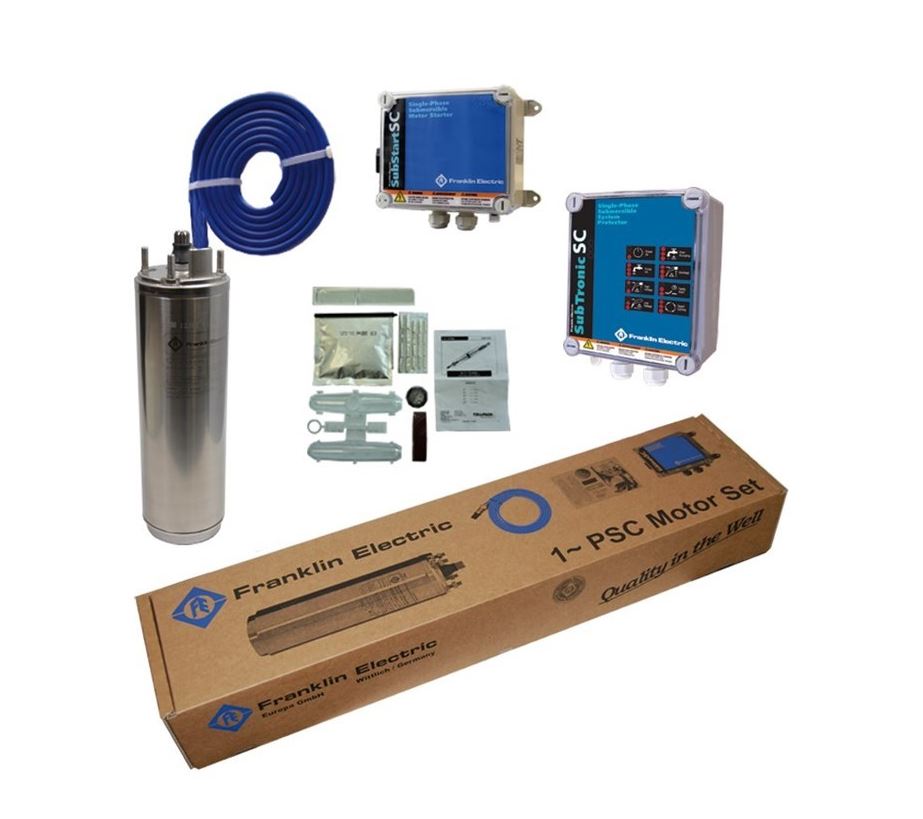

Franklin Electric in an effort to ease our customers’ ordering, stock holding and inventory management, Franklin Electric Europa is introducing the PSC Motor Kit. Consisting of the submersible motor, SubStartSC Motor Starter or SubTronicSC Motor Protection Box, motor short lead and splicing kit all packaged into one compact yet sturdy box, this kit is the ideal stock item to drive your pump.
Product advantages:
- One stop shop – no hassle selecting different components to work together
- Everything available at the same time
- All components matched and warranted by Franklin Electric
- Maximum flexibility – one motor kit can drive as many as 5 different pump models
- Any practical drop cable length (up to 10 mm²) can be spliced using included kit
- Available with SubStartSC Motorstarter or SubTronicSC Motor Protection Box
Technical Specification
- PSC motor range: 0.25 – 2.2 kW
- 4″ PSC Motor with NEMA flange
- Motor protection level: IP 68
- Box protection level: IP 54
- Voltage: 220 – 240 V; – 6 / +10 %; 50 Hz 1-phase
Options
- Motor cable VDE / ACS / KTW approved (1,5 m; special lengths available)
