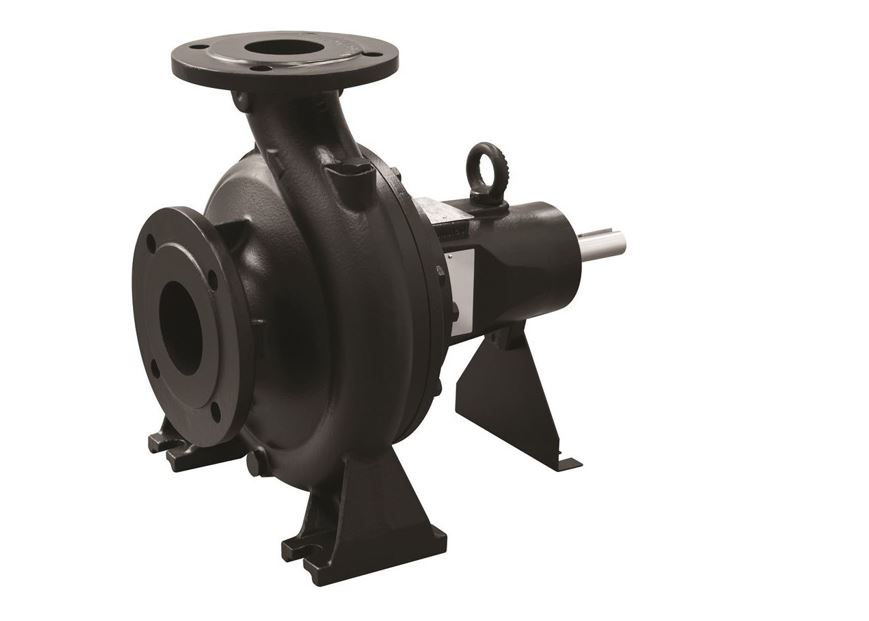

Franklin Electric E-tech Bare shaft version suitable to be coupled with a standard electric motor
Pump specification
- Flow: up to 240 m³/h at 50 Hz
- Head: up to 100 m at 50 Hz
- Maximum liquid temperature:
- up to 90 °C for domestic use
- up to 120 °C for industrial use
- Standard reference:
- ErP 547/2012 (MEI > 0,4)
- UNI EN 733 (DIN 24255)
Materials and building features
- Pump body / Mechanical seal housing / Motor bracket: Cast-iron GG20 with anti-corrosive coating
- Suction/delivery ports: according to standard EN1092-2
- Impeller: Cast-iron GG20 with cataphoresis coating
- Pump shaft: Stainless steel AISI 304
- Mechanical seal: Carbon / Ceramic / NBR
On request
- Version with motor, coupling and base
