All-In-One Package
The Fhoton™ SolarPAK is the system solution to your solar pumping requirements. By utilizing quality components, innovative thinking based on global market inputs, and a technical expertise in groundwater pumping, Franklin Electric has developed a rugged, high-output system which tackles the challenges of harsh and remote environments. No other system delivers the features, benefits, and reliability of Fhoton SolarPAK in just one package!
There are three different systems available:
- Fhoton™ SolarPAK Centrifugal
- Fhoton™ SolarPAK Helical Rotor
- Fhoton™ 3 Power Extension up to 7.5 kW
Fhoton™ SolarPAK Centrifugal
- High-flow system for faster tank-fill and significant water output
- Proven motor and pump technology for long-term reliability
- Robust IP66, NEMA 4 enclosure minimizes impact from wildlife, insects, dust, and weather
- DC solar array
- Operating status indicated by multi-color LED
- Terminals provided for an optional data communications board
- Max Power Point Tracking (MPPT) for maximizing efficiency of input power
- Soft-start feature prevents water hammer and increases system life
- Allows use of new solar array or retrofit to existing array (subject to size and performance check)
- Simple installation with no required maintenance
- Built-in diagnostics and protection
- CE, C-Tick, cULus and UL approved

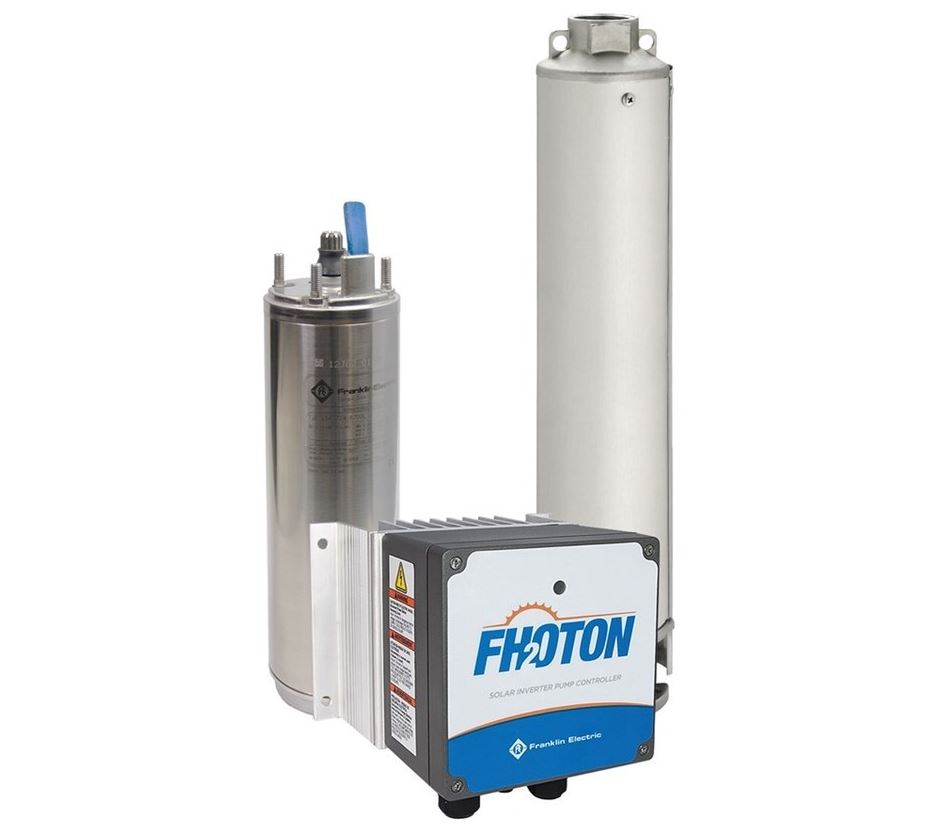

- SolarPAK Contents:
- Franklin Electric 4″ submersible motor
- Franklin Electric 4″ submersible pump
- Fhoton™ Solar controller
- Flow switch
- Variety of flow rates available: 17, 30, 67, 100, 117 lpm (1, 2, 4, 6, 7 m³/h)
- Motor and drive ratings available: 0.55 or 1.1 kW
Fhoton™ SolarPAK Helical Rotor (HR)
The helical rotor pump (sometimes called a progressive cavity or positive displacement pump) generates substantial water pressure at lower flows, providing water even during times of indirect sunlight. Since less energy is required, the Fhoton™ HR SolarPAK utilizes a minimum number of solar panels, making it ideal for applications with flexible water volume requirements.
- Four-inch NEMA standard construction dimensions
- Flex-shaft that allows for minimal radial wear to the motor
- Proprietary software provides increased dry-run and low-flow protection without the need for external devices
- Four-inch Franklin Electric motor
- Built-in check valve
- Pump upthrust washer serves as additional shaft protection from excessive wear in the event of reversed rotation
- Serviceability by pump and motor detaching when needed
- Unique HR Fhoton™ drive algorithm provides increased starting torque levels
- SolarPAK Contents:
- Franklin Electric 4″ submersible motor 0.75 kW / 1.1 kW
- Franklin Electric 4″ submersible helical rotor pump 10, 25 or 50 lpm
- Fhoton™ Solar controller: 0.55 kW / 1.1 kW
Fhoton™ 3 – Power Extension up to 7.5 kW
- New Fhoton system covers all existing features of 0.5 and 1.1 kW Fhoton™
- Ideal design for performances up to 7.5 kW
- Robust IP56, NEMA 4 enclosure minimizes impact from wildlife, insects, dust, and weather
- CE, C-Tick, cULus and UL approved
- Mobile App Features
- Real-time System Monitoring; Motor Frequency, Motor Current, Motor Voltage
- Drive Set-up: Maximum/Minimum Frequency, Minimum Off-time, Underload
