5″ Stainless steel close-coupled submersible multistage pumps
Franklin Electric E-tech Stainless Steel Close-Coupled Multistage Submersible Pump Full Stainless Steel Pump
Applications
- Water distribution
- Rainwater recovery
- Irrigation / Gardening / Sprinklers
- Dewatering
- Wash down unit
- Other various installations
Features
- Easy installation: the single-phase version have internal capacitor and thermic motor-protection thus is not necessary to connect the pump to a control panel
- Compact close-coupled design, robust and corrosion resistant
- Double mechanical seal separated by an oil* chamber for maximum motor protection. *In compliance with FDA – Food, Drug Administration – and the annex to G.U. no. 104 of 20/04/73 for oils in contact with food stuffs
- Plug-in type power cable and level control (floater) for easy replacement
- Heavy duty over size motor shaft
- Stainless steel water proof capsule to protect the motor
- Motor cooling is guaranteed by the pumped liquid

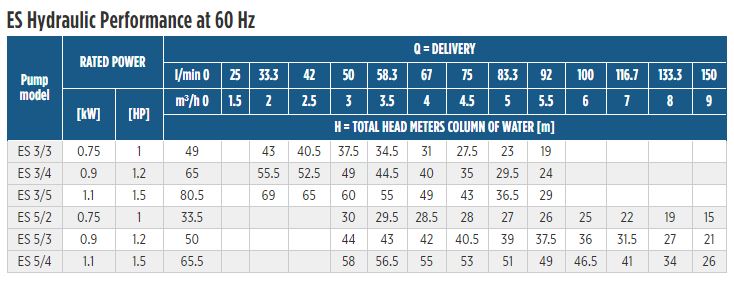

Specifications
- Flow:
- up to 7.5 m³/h at 50 Hz
- up to 9 m³/h at 60 Hz
- Head:
- up to 88 m at 50 Hz
- up to 80.5 m at 60 Hz
- Discharge outlet: 1¼” Rp or NPT
- Maximum immersion depth: 20 m
- Maximum allowable amount of sand: 50 gr/m³
- Maximum solids size: up to 2 mm
- Liquid temperature range -5 °C to 40 °C
- Continuous operation either in vertical or horizontal position
- 20 m of power cable type H07RN F is supplied with the standard version
| Part Numbers | ES 3/3, ES 3/4, ES 3/5, ES 3/6, ES 3/7, ES 3/8 |
|---|
