EDV Three phase Drainage Pump for Dirty Water

Stainless steel Drainage submersible pumps for dirty water
  • Max Flow:  433 m3/h
  • Max Head:  8.1 m
  • Series:  EDV Series
  • Phase:  Three Phase

Franklin Electric E-tech EDV Series Three Phase Stainless steel Drainage submersible pumps for dirty water.

Contact us for more info

Franklin Electric E-tech EDV Series Single Phase Stainless steel Drainage submersible pumps for dirty water.

Construction

  • Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port
  • ED: with two-passage impeller
  • EDV: with free-flow (vortex) impeller
  • Double shaft seal with interposed oil chamber

Applications

  • For clean and dirty water, also containing solids up to 35 mm grain size
  • The EDV free-flow impeller construction is particularly suitable for liquids with a high solid content or with filamentous particles
  • This construction (with smooth surfaces in rolled-stainless steel and easy access for cleaning) is also suitable for certain uses in the food industry

Operating conditions

  • Liquid temperature up to 35 °C
  • Maximum immersion depth: 5 m
  • Minimum immersion depth: 248 mm
  • Continuous duty (with submerged motor)

Motor Specifications (ED and EDV Series Range)

  • 2-pole induction motor, 50 Hz (n ≈ 2900 rpm)
  • ED, EDV:
  • Single-phase 230 V ± 10 %, with level switch and thermal protector
  • Incorporated capacitor
  • Cable: H07Rn-F, 3G1 mm2, length 10 m, with plug CeI-UneL 47166; 5 m for ED5/EDV5
  • EDT, EDVT:
  • Three-phase 230 V ± 10 %; 3-phase 400 V ± 10 %
  • Cable: H07Rn-F, 4G1 mm2, length 10 m, without plug; 5 m for ED5T/EDV5T
  • Insulation class F
  • Protection IpX8 (for continuous immersion)
  • Triple impregnation humidity-proof dry winding
  • Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41

Available on request

    • Other voltages
    • Frequency 60 Hz
    • Other mechanical seal
    • Cable length 20 m
    • Motor suitable for operation with frequency converter
    • Three-phase pumps with incorporated float switch

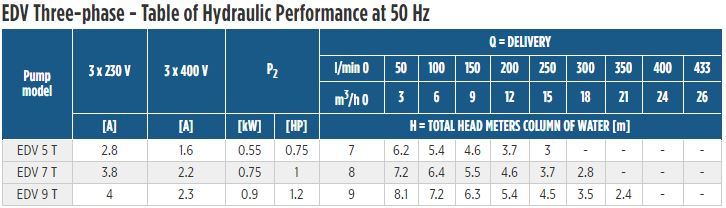

Technical

Downloads


Click here to download catalogue page
