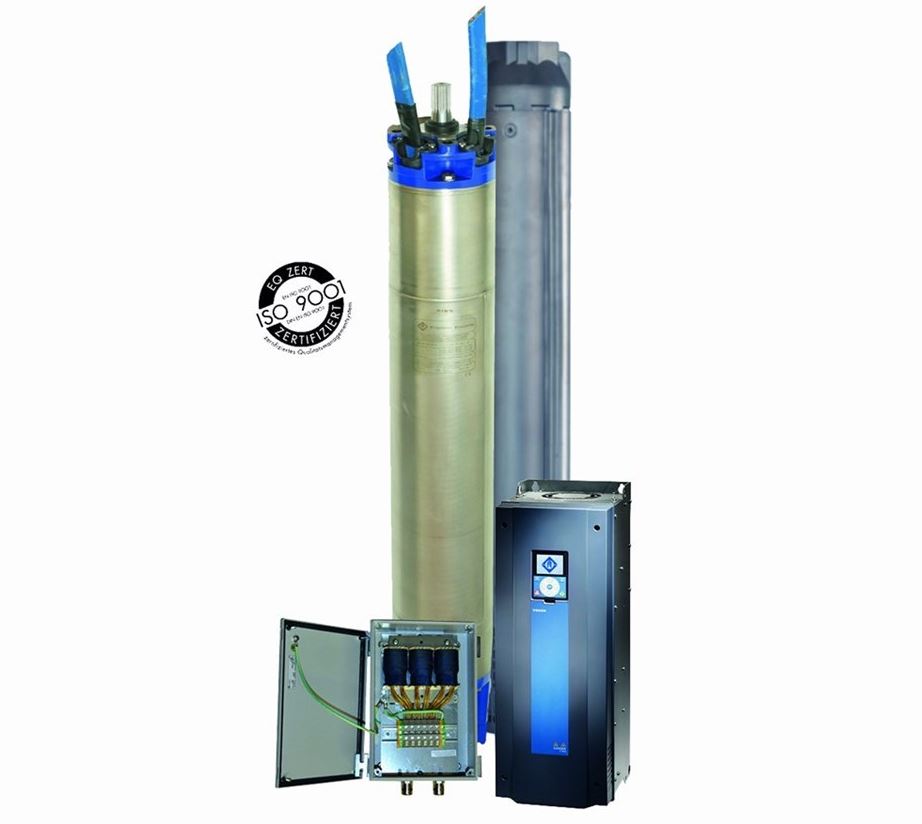

Franklin Electric is pleased to announce the range extension up to 150 kW for its successful High Efficiency Submersible Borehole Systems (HES). The system consists of an 8″ synchronous submersible NEMA motor with associated variable frequency drive and matching output filter.
Ever since their introduction, our 6″ HES have proven their world-class efficiency in more than 400 applications to date, saving up to 20 % of electrical energy when compared to standard asynchronous motor system.
System Product Advantages:
- One-stop shop – perfectly matched components guarantee first class performance/ efficiency
- System payback < 2 years
- Up to 8 % improved motor efficiency with excellent partial load behavior*
- SKU Reduction
- Significantly lower motor heat rise
- Increased lifetime
- Higher power density
- Lightweight
- Easy set-up due to tailored pre-setting, user interface, own Franklin Electric Software and Quick Installation Guide (QIG)
- Speed control
- Optimum aggregate operation – pump matches system any time
- Incorporated soft start and protection features
- Increased lifetime
- No additonal investment
- Reduced amps
- Smaller drop lead cross size
- Power factor corrected input
- No power compensation needed
- Connectivity: built in Modbus, optional Profibus and Ethernet

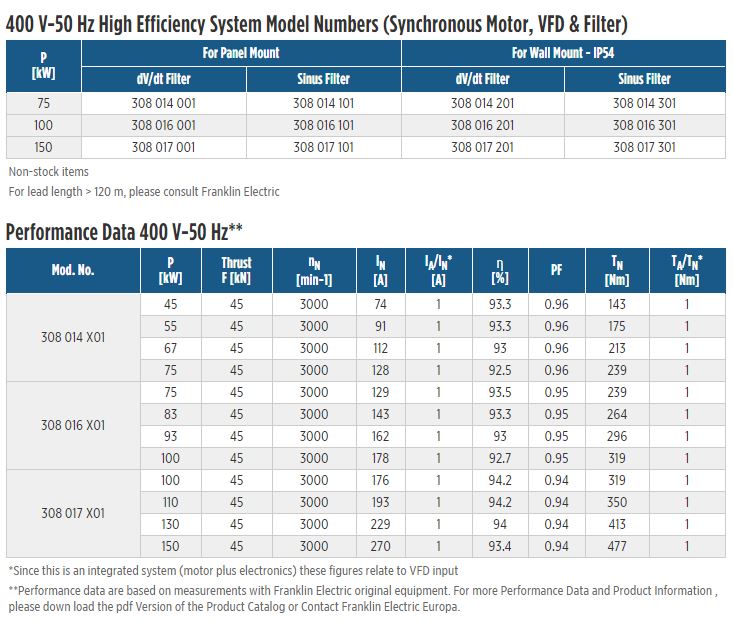

System Technical Specifications:
- Rating: 75 / 100 / 150 kW
- System power supply
- Voltage 400 V +/- 10 %
- Frequency 50 Hz +/- 6 %
System Options:
- Plug-in card 6x DI/DO – 308 170 201
- Plug-in card PT100 – 308 170 202
- Plug-in card Profibus – 308 170 203
- Plug-in card 1x AI & 2x AO 308 170 206
- Other voltages
- Sinus output filters in IP54 and IP00
- PT100 protection
- Motors in 316SS and 904L*In comparison to current asynchronous technology
