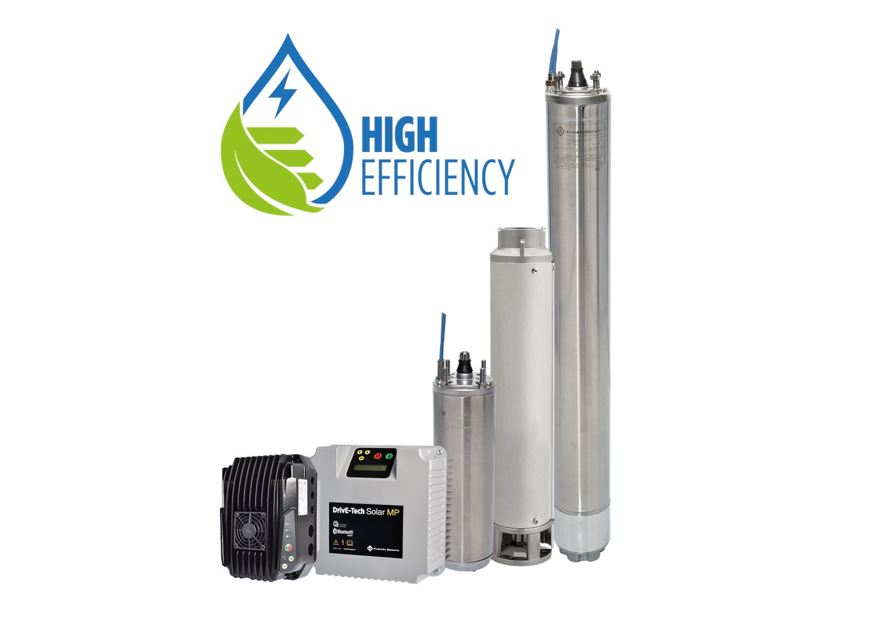

4″ High Efficiency System

The complete package consisting of variable frequency drive, permanent magnet synchronous motor, submersible pump and optional output filter offers a compact and smart high-output system solution to meet your water pumping requirements. Well-chosen and perfectly matching components guarantee first-class efficiency and energy saving of up to 21 %*.

The 4″ High Efficiency System can be used in either grid or solar applications which makes it a unique and flexible all-in-one solution.

The complete package consisting of variable frequency drive, permanent magnet synchronous motor, submersible pump and optional output filter offers a compact and smart high-output system solution to meet your water pumping requirements. Well-chosen and perfectly matching components guarantee first-class efficiency and energy saving of up to 21 %*.

The 4″ High Efficiency System can be used in either grid or solar applications which makes it a unique and flexible all-in-one solution.

FEATURES & BENEFITS

  • SUPERIOR EFFICIENCY
  • Up to 15 points (21 %) improved motor efficiency*
  • Excellent partial load behaviour (SKU reduction)
  • Due to the high motor efficiency, amps are significantly reduced, which might lead to smaller drop lead cross size and thus cost saving
  • One-stop shop and perfectly matching components guarantee first-class performance/efficiency
  • Power factor corrected input (No power compensation needed)
  • EASY INSTALLATION & FULLY SUPPORTED
  • Easy system set-up due to Franklin Electric App in combination with tailored pre-settings
  • Fully supported by the Technical Support Professionals and Field Service Engineers
  • INCREASED LIFETIME
  • Incorporated Soft start and protection features (no additonal investment)
  • Speed control (Optimum aggregate operation – pump matches system any time)
  • UP-TO-DATE CONNECTIVITY
  • Factory-featured with Bluetooth 4.0 Connectivity
  • Remote control and maintenance via Mobile App

SPECIFICATION

  • Motor range: 1.1 / 2.2 / 3.0 / 4.0 kW (50 Hz – 3000 rpm)
  • Motor range: 1.2 / 2.5 / 3.4 / 4.6 kW (60 Hz – 3600 rpm)
  • System Power Supply: 220 V – 400 V ± 10 %
  • Frequency: 50 Hz – 60 Hz ± 2 %
  • Nominal ambient temperature: motor: 30 °C, electronics: 50 °C (> 40 °C with derating)
  • Vertical and horizontal motor operation
  • Protection:
  • motor: IP68, insulation class B
  • drive: IP66/65
  • filter: IP00

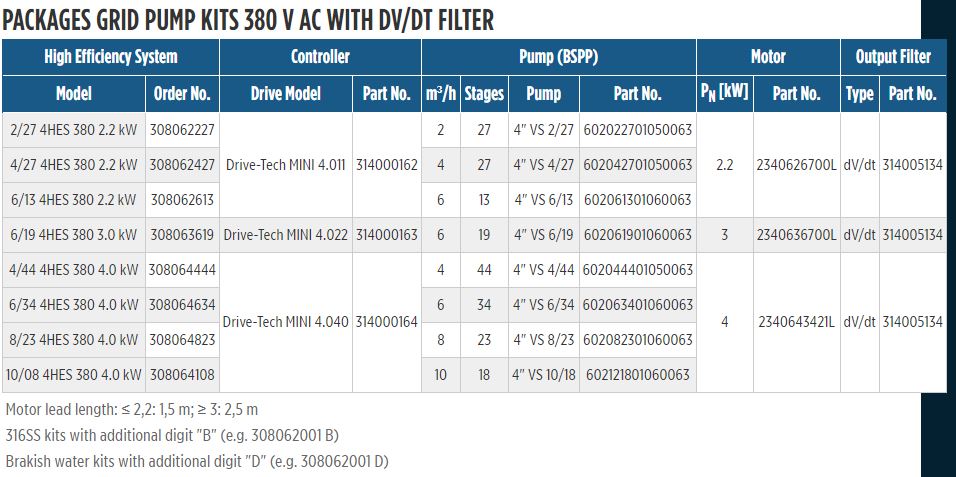

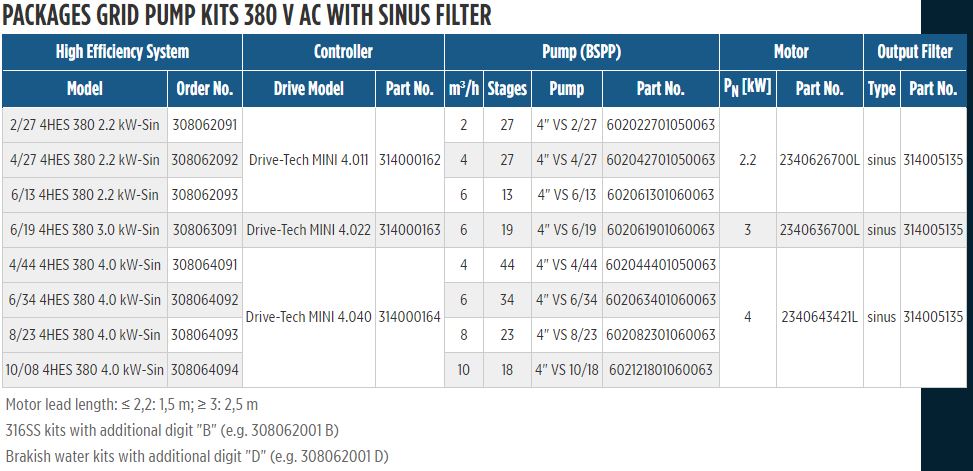

PACKAGED DEAL

  • 4″ synchronous submersible NEMA motor
  • 4″ submersible pump
  • Variable frequency drive
  • Matching output filter for 400 V systems

OPTIONS

  • Special Voltages
  • Higher-graded material: 316SS
  • Sinus output filters in IP00 (400 V)
  • VFD IP21 for 400 V systems (on request)
  • Solar

Performance

Downloads


Click here to download catalogue page
